Yokogawa EJA210E Flange Mount Differential Pressure Transmitter

Original Yokogawa EJA210E Flange Mount Differential Pressure Transmitter

Details:

Yokogawa EJA210E is a flange-mounted differential pressure transmitter from the EJA-E series. It adopts a single-crystal silicon resonant sensor and combines the advanced technology and performance of the EJA-A series and EJX series, offering high stability and accuracy in harsh industrial environments. With a precision of ±0.075% and stability of ±0.1% URL/year, it features a response time of 120 milliseconds and is certified by TUV and Exida SIL2/SIL3. The EJA-E series also supports multiple maintenance methods, including local parameter settings (LPS) without the need for external

devices.

Specification:

Key Features of the EJA210E

• High Accuracy: ±0.075% for precise differential pressure measurement

• Exceptional Stability: ±0.1% per year, ensuring consistent long-term performance

• Fast Response: 120 ms response time for quick data acquisition

• Safety Certified: Exida & TUV SIL2 / SIL3 certification, making it suitable for safety-critical applications

• Advanced Output Customization: Signal Characterizer for optimized 4–20 mA output

• User-Friendly Configuration: Local Parameter Setting (LPS) for easy adjustments without external tools

Capsule Ranges:

Process Connections:

	Process connection Type	Size	Extension	Flange
	Flush Type	3-inch 2-inch 1 1/2-inch	N/A	JIS 10K,20K
				ANSI150#,300#
				JPI Class 150,300
				DIN PN10/16,25/40
	Extended Type	4-inch 3-inch	2-inch 4-inch 6-inch	JIS 10K, 20K
				ANSI150#,300#
				JPI Class 150,300
				DIN PN10/16,25/40

Packing:

General Questions

Q1: What is the Yokogawa EJA210E used for?

A: The EJA210E is designed for flange-mounted liquid level measurement, making it ideal for applications involving solidifying or precipitating liquids.

Q2: What makes the EJA210E different from other pressure transmitters?

A: The EJA210E features Yokogawa’s DPharp digital sensor, which provides higher accuracy, long-term stability, and dynamic compensation for temperature and static pressure effects.

Technical Specifications

Q1: What is the accuracy of the EJA210E?

A: The standard accuracy is ±0.075%, ensuring precise differential pressure measurement.

Q2: What is the response time of the transmitter?

A: The response time is 120 milliseconds, allowing for fast and reliable measurements.

Q3: What is the stability of the EJA210E?

A: It offers ±0.1% stability per year, ensuring consistent performance over time.

Installation & Maintenance

Q1: How is the EJA210E installed?

A: It is a flange-mounted differential pressure transmitter, meaning it is installed directly onto process vessels for liquid level measurement.

Q2: Does the EJA210E require frequent calibration?

A: No, thanks to its long-term stability, it requires minimal recalibration.

Safety & Certifications

Q1: Is the EJA210E certified for safety applications?

A: Yes, it is SIL 2 / SIL 3 certified by Exida and TUV, making it suitable for safety-critical applications.

Q2: Does the transmitter support Local Parameter Setting (LPS)?

A: Yes, it features Local Parameter Setting (LPS) for easy configuration without external tools.

Common models:

EJA210E-JMS4G-912DN-WH23A2SW00-B
EJA210E-JHSCJ-917EN-WH23B2SW00-A
EJA210E-DMS5J-914NN-EG23A2WE03-B/NF2
EJA210E-JMS5J-912NN-WG22A2WW00-B
EJA210E-DMS5G-912NN-WJ23C2TW00-B/NF2
EJA210E-JMS5J-917NN-WG22B2WW00-B/NF2
EJA210E-JHS5G-91CEN-WA13B2SW00-B
EJA210E-DMS4J-912DN-WH22A2WW00-B
EJA210E-JHS4J-912EN-WG22A2WW00-A/NF2
EJA210E-JMS0J-912EN-WA12A2WW00-B

Why Choose Us?

• 100% Genuine & High-Quality Products – Every item we sell is new, original, and of the highest quality.

• Competitive Pricing – We offer exceptionally competitive prices to ensure the best value for our customers.

• Extensive Stock Availability – Our large inventory allows us to supply even the most hard-to-find components.

• Customer-Centric Service – We value every inquiry and guarantee a response within 24 hours.

• Fast & Reliable Shipping – Orders are dispatched within 1-3 working days after payment is received.

• Stringent Quality Control – Each item is tested individually before shipment to ensure top performance.

• Secure Packaging – We take extra care to protect products during transit.

• Expert Technical Support – Our experienced team is ready to provide professional assistance and solutions.

EJA210E differential pressure transmitter

20mA differential pressure transmitter

differential pressure transmitter 4 20ma

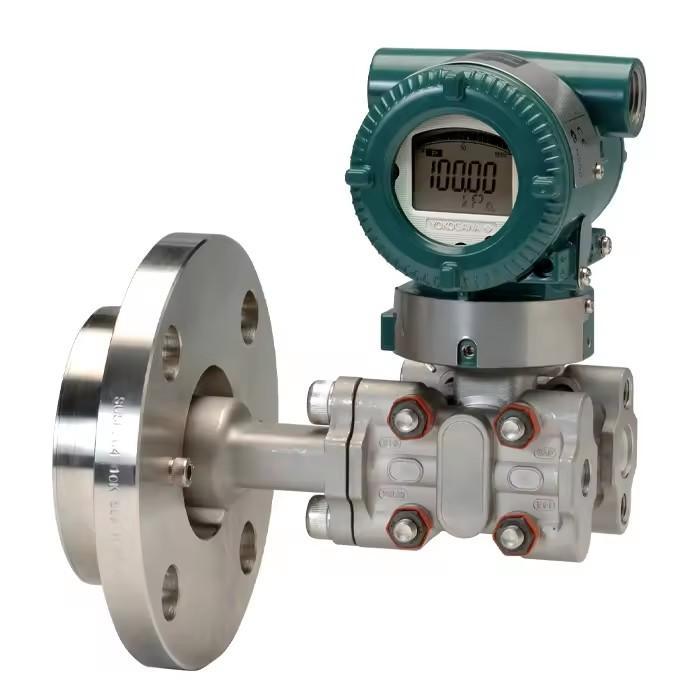

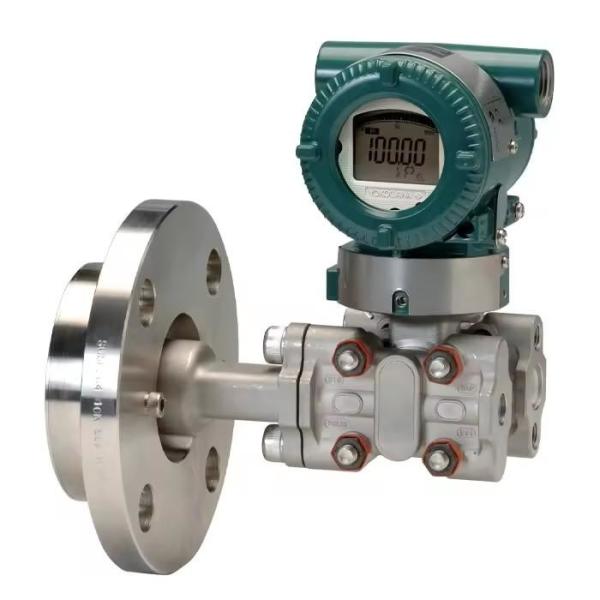

Yokogawa EJA210E Flange Mount Differential Pressure Transmitter Images
